Conditie: Nieuw
Type: Switch
Levering: Ophalen of Verzenden

Beschrijving

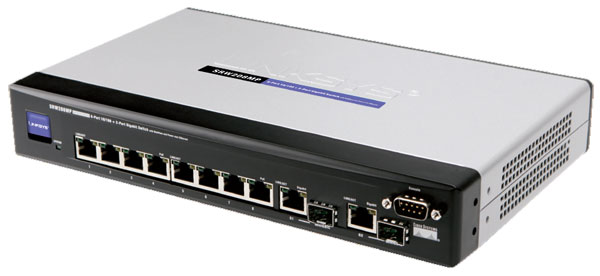

Ik bied een zeer mooie Cisco SRW208MP 8-port 10/100 Ethernet Switch aan. Deze is aangekocht voor een testproject maar nu het afgerond is niet meer nodig.

Enkele gegevens over de switch:

Linksys SRW208MP Maximum Power PoE Switch
8 Ports PoE
15.4W on all 8 ports
IEEE 802.3af Compatible


8-port 10/100 Ethernet Switch with WebView and Maximum PoE

Growing businesses require cost-effective, networking solutions that can scale with ever changing business needs. The Linksys SRW208MP WebView managed switch brings a whole new level of intelligence and security to the network infrastructure. The combination of its intelligence and small size make it ideal for a conference room or training room where security and uptime are important. It offers a two Gigabit copper or optical interfaces for connection to a core switch.

Standards-based IEEE 802.3af PoE - 15.4W on 8 ports

Dual gigabit uplinks provide increased bandwidth and redundancy.

802.1x port authentication and MAC address filtering brings network security down to the switch port level.

Advance QoS enables the network to be optimized for your networked applications, including voice, video and data storage.

For Wireless or VoIP deployments, the SRW208MP supports IEEE802.3af standard for Power over Ethernet. With automatic load sensing, the power control circuitry automatically detects Power over Ethernet on end-device before providing power. Power feeding of Ethernet is limited for fixed 10/100 Base-T/TX ports. The solution can provide maximum output power per PoE port up to 15.4W on all 8 ports simultaneously. Independent overload and short-circuit protection for each port. LED indicators for power status per PoE port.

Network security is a top priority in any size business. Most business data networks, large and small, are unsecured. Unauthorized access to the network and mission critical data is a constant concern. The SRW208MP secures the network through 802.1X port authentication and MAC Filtering. 802.1X requires the client to authenticate themselves before the port will pass data.

Businesses are recognizing the benefits of doing Voice over IP (VoIP) and are quickly migrating their voice services to IP-based platforms, requiring their local area networks to support both voice and data applications. In unmanaged IP networks, bursty data sessions can disrupt voice packet delivery, causing poor voice quality. With the enhanced QoS and traffic management features in the SRW208MP, voice data can be prioritized, ensuring clear and reliable voice communications.

Enabling the SRW208MP advanced features further secures the integrity of your network. The WebView interface provides an intuitive, secure management interface enabling you to better utilize the comprehensive feature-set of the switch, resulting in a better optimized, more secure network.


Features

8 - 10/100 Switched RJ45 ports deliver up to 200Mbps of throughput per port

2 - 10/100/1000 Switched RJ45 / Mini-GBIC Combo Ports

PoE on 10/100 ports supply up to IEEE 802.3af maximum of 15.4W on 8 ports

5.6 Gbps Non-blocking, store-and-Forward switching mechanism

Simplified QoS management enabled by advanced queuing techniques using 802.1p, Diffserv or ToS traffic prioritization specifications

Configuration and monitoring from a standard web browser with WebView management

Secure remote management of the switch via SSH and SSL secure channel network protocols

802.1Q based VLANs enable segmentation of networks for improved performance and security

Private VLAN Edge for simplified network isolation for guests connections or autonomous networks

Automatic configuration of VLANs across multiple switches through GVRP/GARP

Automatic MDI/MDIX detection support

User/Network port level security via 802.1x authentication and MAC-based filtering

Increased the bandwidth (up to 8x) and added link redundancy with Link Aggregation Control Protocol (LACP)

Enhanced rate limiting capabilities provide control, including back pressure to control the rate that data that can flow in and out of a port

Multicasting, Broadcasting and Flooding Control

Port Mirroring for non‑invasive monitoring of switch traffic

Jumbo frame support - up to 1632 bytes

SNMP v1, v2c, v3

Fully rack-mountable using the included rack-mounting hardware

Specifications

Ports
8 RJ45 connectors for 10BASE-T and 100BASE-TX,
2 RJ45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with 2 SFP slots
Console port
Auto MDI/MDI-X
Auto-negotiate/Manual setting

Cabling Type
UTP CAT 5 or better for 10BASE-T/100BASE-TX,
UTP CAT 5e or better for 1000BASE-T

LEDs
10/100 Link/Act, PoE, 2 Giga Link/Act, Speed, System

PoE
802.3af complaint. Supply up to IEEE Standard maximum
of 15.4W on 8 10/100 ports

Switching Capacity
5.6 Gig non-blocking

Forwarding Rate
4.17Mpps wire-speed performance

MAC table size
8K

Number of VLANs
256 active VLANs (4096 range)

VLAN
Port-based and 802.1Q Tag-based VLANs
Management VLAN

HOL
Blocking Head of line blocking prevention


Management

Web User Interface
Built-in Web UI for easy browser-based configuration (HTTP/HTTPS)

SNMP
SNMP version 1, 2c,3 with support for traps

SNMP MIBs
RFC1213 MIB-2, RFC2863 Interface MIB, RFC2665 Ether-like MIB,
RFC1493 Bridge MIB, RFC2674 Extended Bridge MIB (P-bridge, Q-bridge),
RFC2819 RMON MIB (groups 1,2,3,9 only), RFC2737 Entity MIB,
RFC 2618 RADIUS Client MIB, RFC 1215 Traps, Private PoE MIB

RMON
Embedded Remote Monitoring (RMON) software agent supports four
RMON groups (history, statistics, alarms, and events) for enhanced traffic
management, monitoring, and analysis.

Firmware Upgrade
Web Browser upgrade (HTTP) and TFTP

Port Mirroring
Traffic on a port can be mirrored to another port for analysis
with a network analyzer or RMON probe.

Other Management
Traceroute
Secure Socket Layer (SSL)
Secure Shell (SSH)
RADIUS
Port mirroring
TFTP upgrade
SSL security for Web UI
DHCP Client
BootP
SNTP
Xmodem upgrade
Cable Diagnostics
PING
Telnet Client (SSH secure support)

Security
IEEE 802.1x
802.1x - RADIUS Authentication. MD5 Encryption

Access Control
ACLs - Drop or Rate Limit based on:
Source and Destination MAC-based
Source and Destination IP address
Protocol
TOS/DSCP
Port
VLAN
Ethertype

Link Aggregation
Link Aggregation using IEEE 802.3ad LACP
Up to 8 ports in up to 8 groups

Storm Control
Broadcast, Multicast and Unknown Unicast

Spanning Tree
IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree,
IEEE 802.1s Multiple Spanning Tree

IGMP Snooping
IGMP (v1/v2) snooping provides for fast client joins and leaves of multicast
streams and limits bandwidth-intensive video traffic to only the
requestors. Support 256 multicast groups.

QoS
Priority levels
4 Hardware queues

Scheduling
Priority Queuing and Weighted Round Robin (WRR)

Class of Service
Port-based
802.1p VLAN priority based
IPv4/v6 IP Precedence/TOS/DSCP based
TCP/UDP port based
Diffserv
Classification and Remarking ACLs

Rate Limiting
Ingress policer
Egress rate control

Standards
802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet,
802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet,
802.3x Flow Control, 802.3 ad LACP,802.3af PoE, 802.1D STP,
802.1Q/p VLAN, 802.1w Rapid STP, 802.1s Multiple STP,
802.1x Port Access Authentication



Dimensions
11” x 1.75” x 6.69”
W x H x D (279.4 mm x 44.5 mm x 170 mm)

Unit Weight
2.65 lbs (1.2 kg)

Power External
AC Power Adapter

Certification
FCC Part15 Class A, CE Class A, UL, cUL, CE mark, CB

Operating Temp. 32 to 104ÂșF (0 to 40ÂșC)

Storage Temp. -4 to 158ÂșF (-20 to 70ÂșC)

Operating Humidity 10% to 90%

Storage Humidity 10% to 95%


Package Contents

SRW208P with 8 10/100 Base-T and 2 Gig combo ports with SFP or RJ45
AC Power Adapter with Power Cord
Two Rack Mounting Kits/eight screws
CD with User Guide in PDF Format
Registration Card
Console Cable

Doe een realistisch bod en hij is van jou
